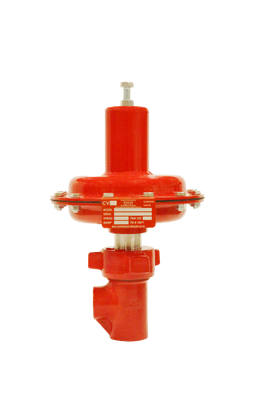

CV15S

Specifications

• Body Size: 1”
• Connections: FNPT
• Body Type: Globe, Angle
• Trim Characteristic: Quick Open, Modified % (Throttling)
• Trim Size: 0.25”, 0.375” (3/8”), 0.50”, 0.75” and 1.00”
• Pressure Rating: 4000 psi (-50°F to 200°F), 3755 psi at 400°F
• Temperature Range:
  • CV10 (close coupled): -50° F to 200° F (-46° C to 93° C)
  • CV15 (open yoke): -50° F to 400° F (-46° C to 204° C)
• Shutoff: ANSI Class IV
• Actuator Sizes: No. 35 (35 in ² area), Non-Adjustable
• Input Signal Ranges: 3-15 psi, 6-30 psi
• Materials:
  • Body: LCC
  • Packing Plug: Nickel Plated A105 Steel, A350 LF2 (Low Temp Option)
  • Hammer Nut: A105 Steel, A350 LF2 (Low Temp Option)
  • Trim: 17/4 Stainless, Carbide (Optional)
  • Actuator Housing: Carbon Steel
  • Yoke: A395 Ductile Iron
